Triomatic WP wheel-driven feeding robot

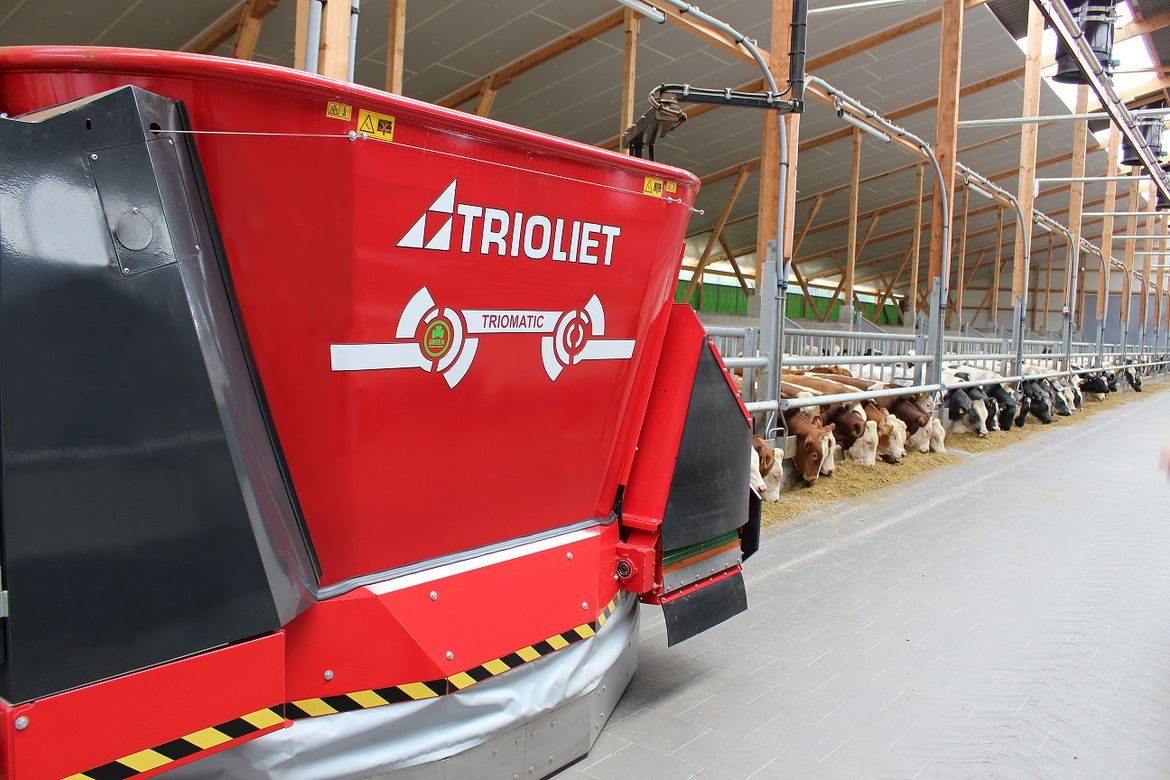

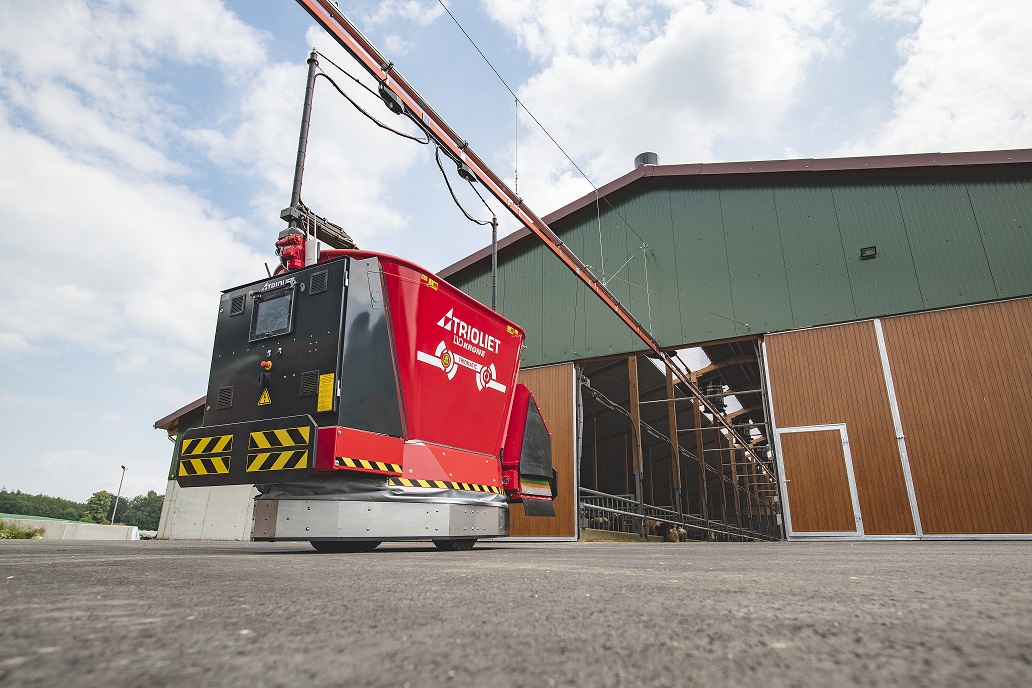

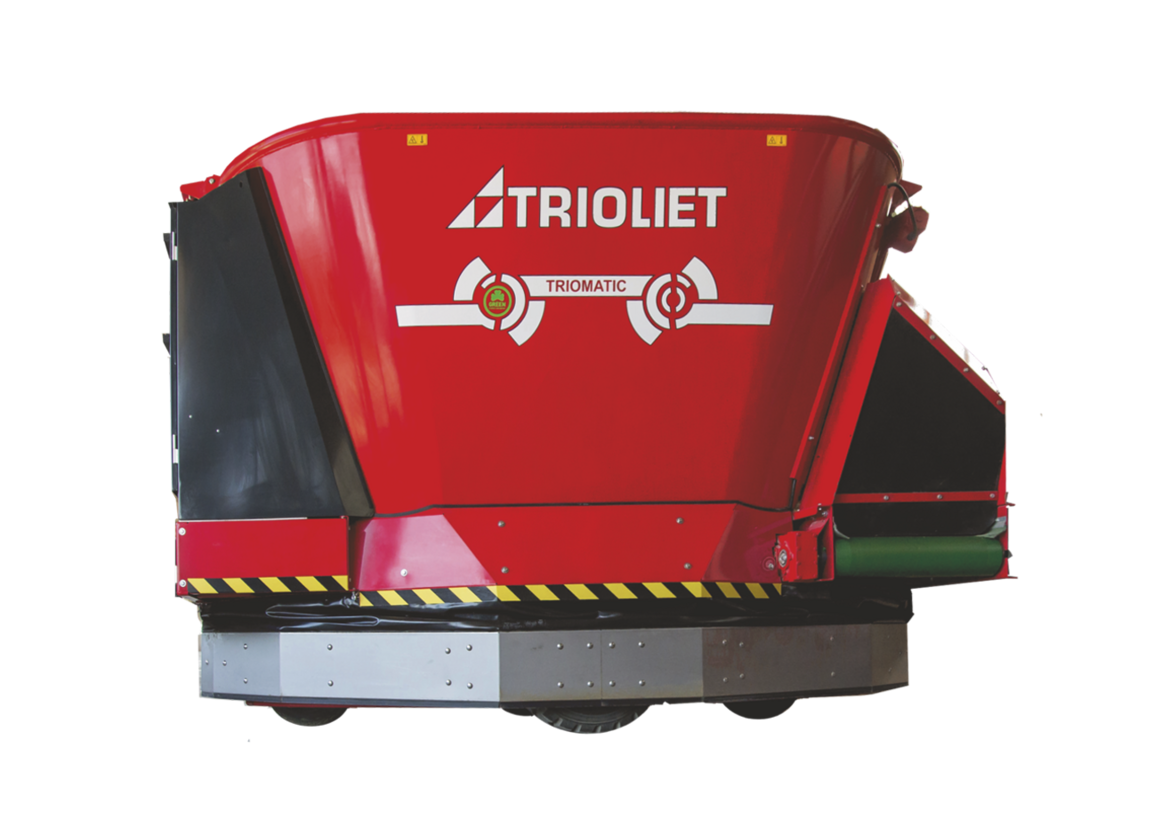

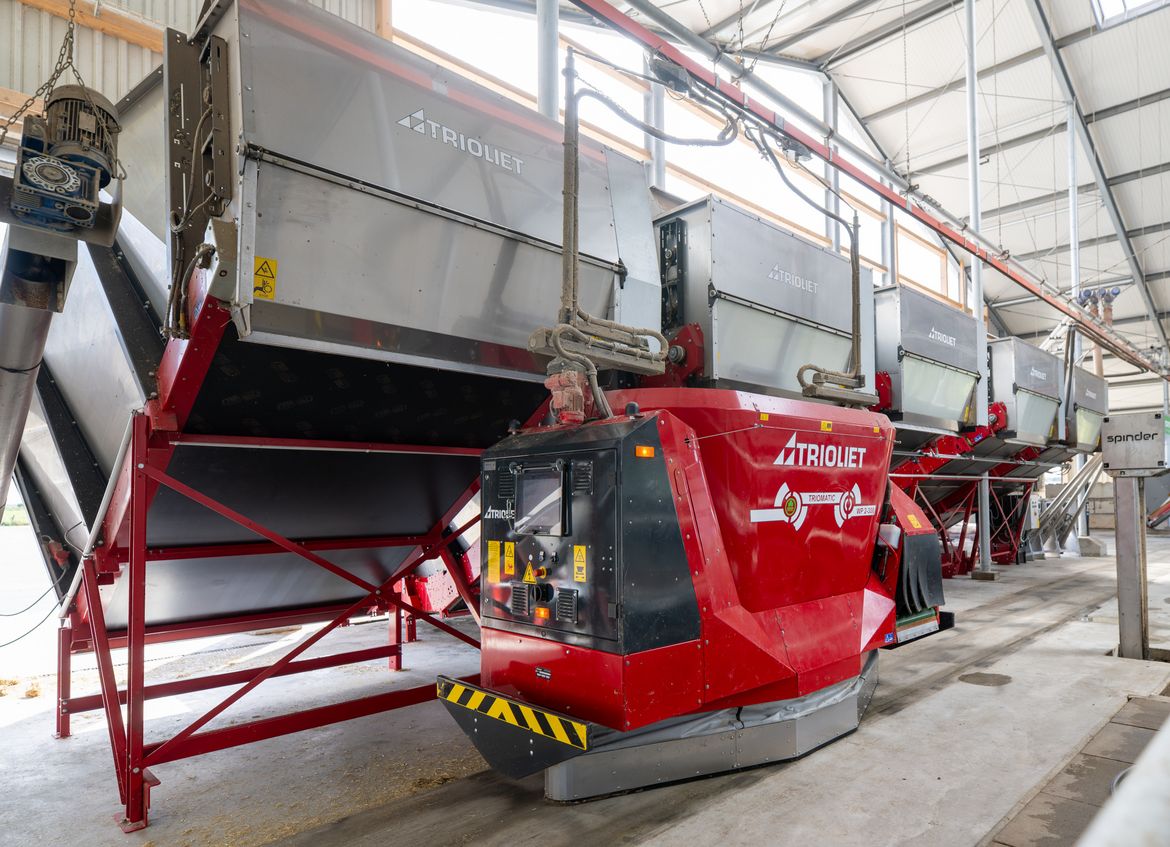

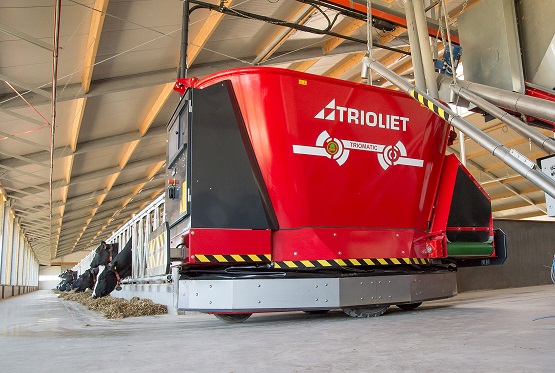

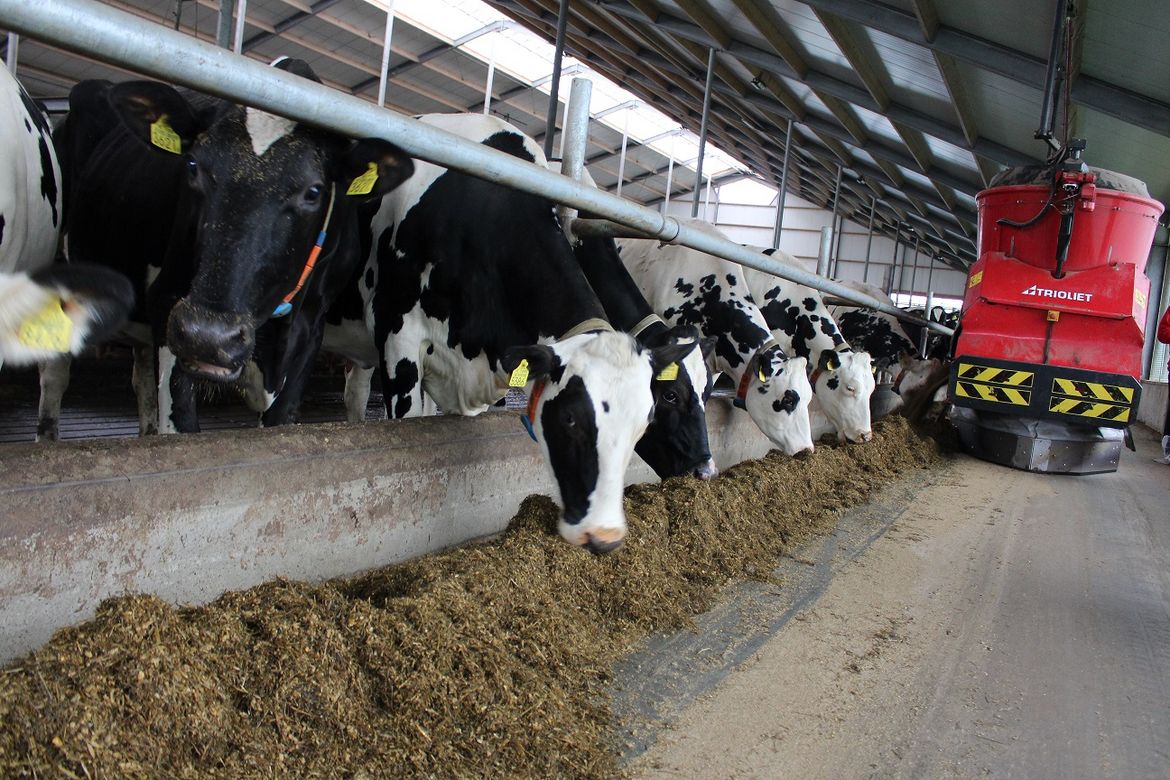

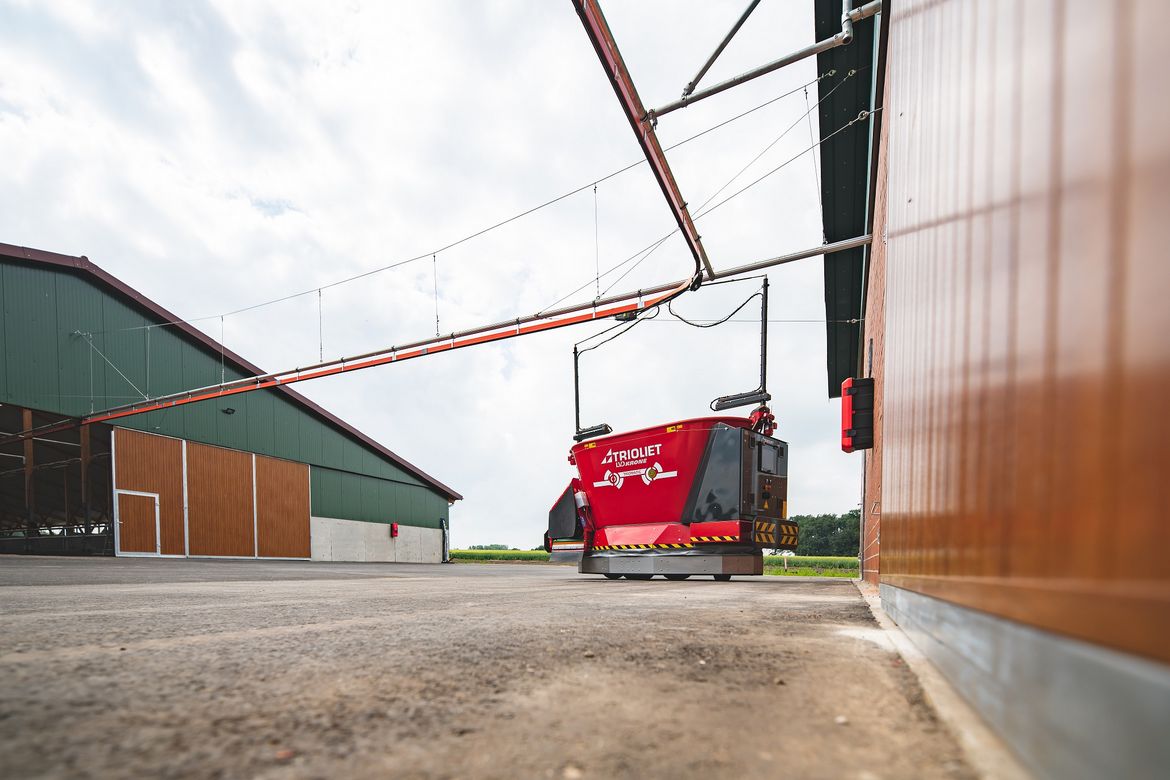

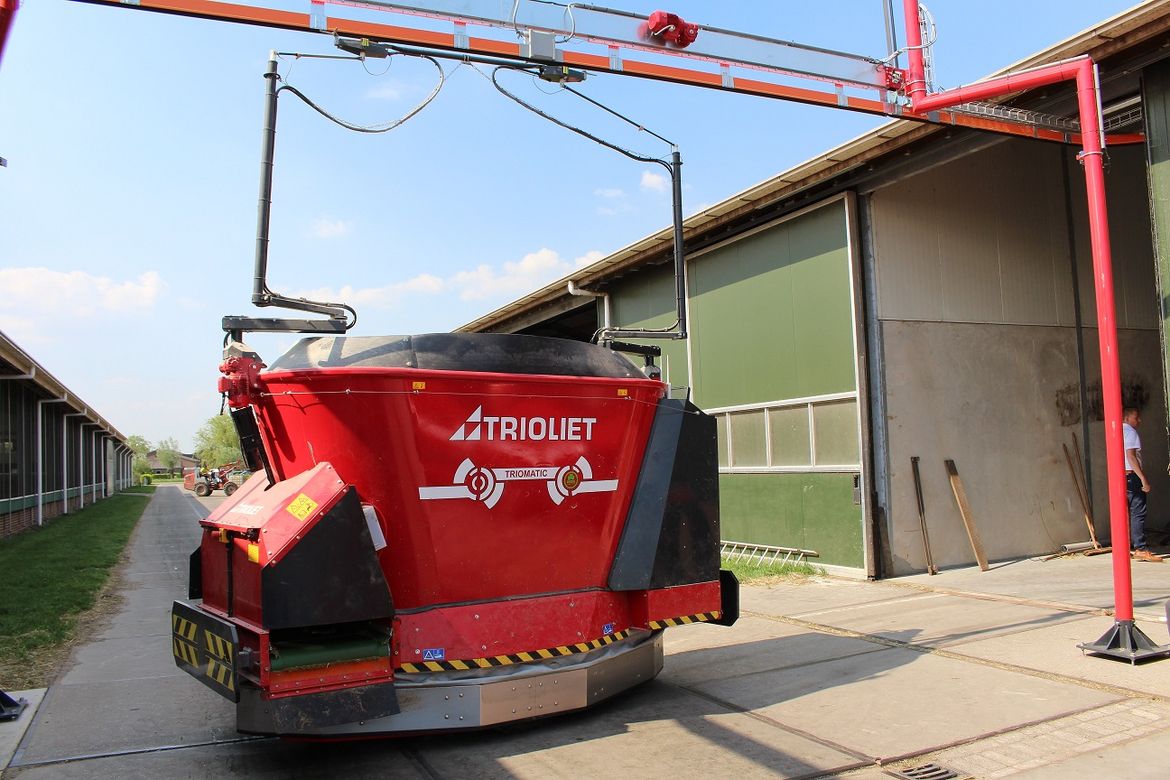

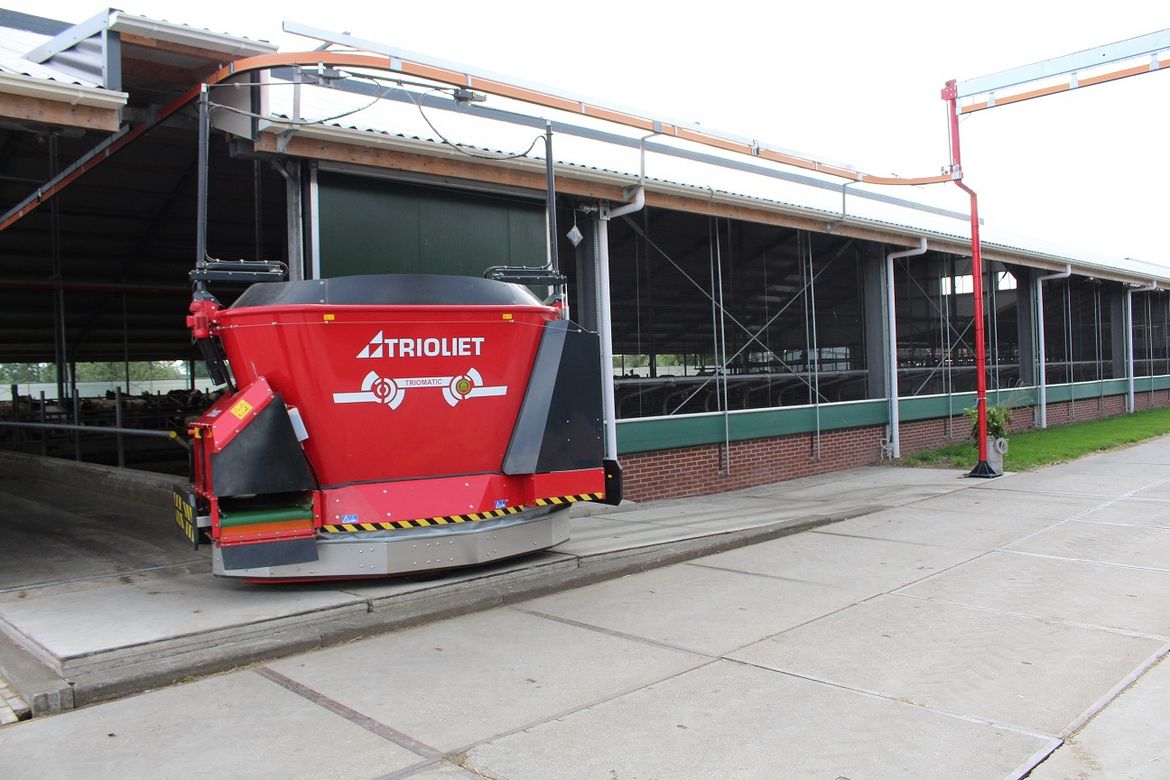

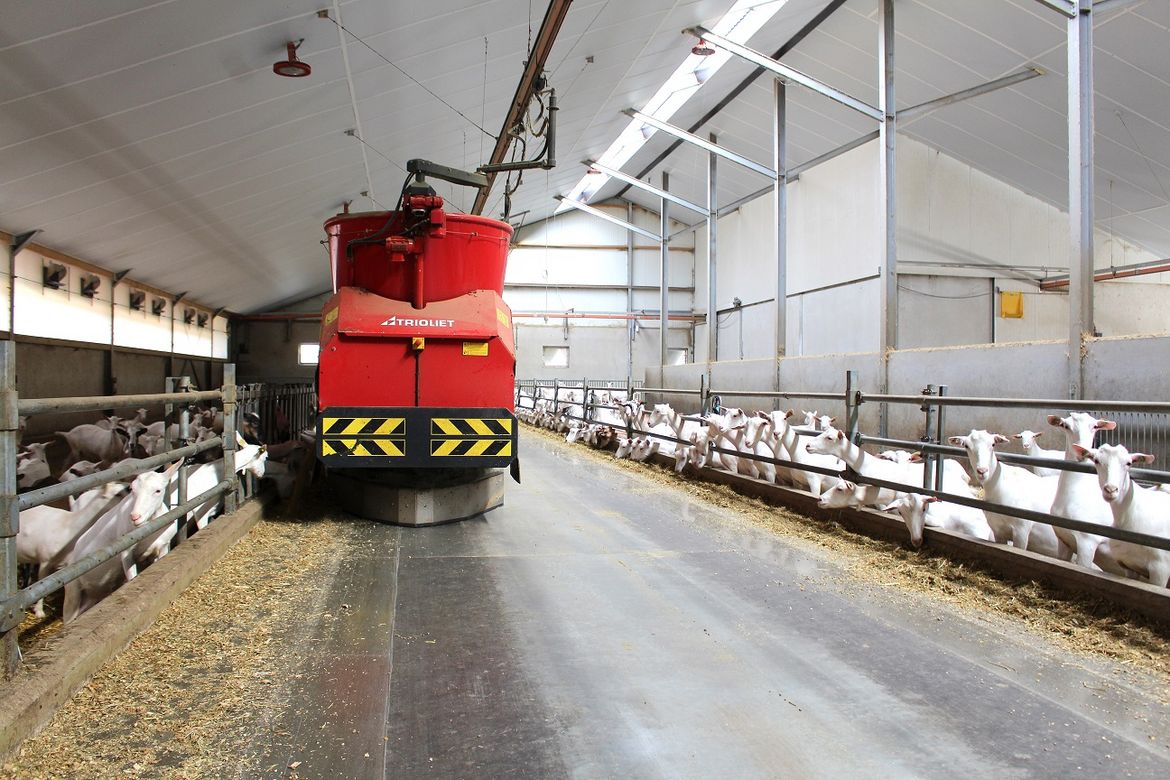

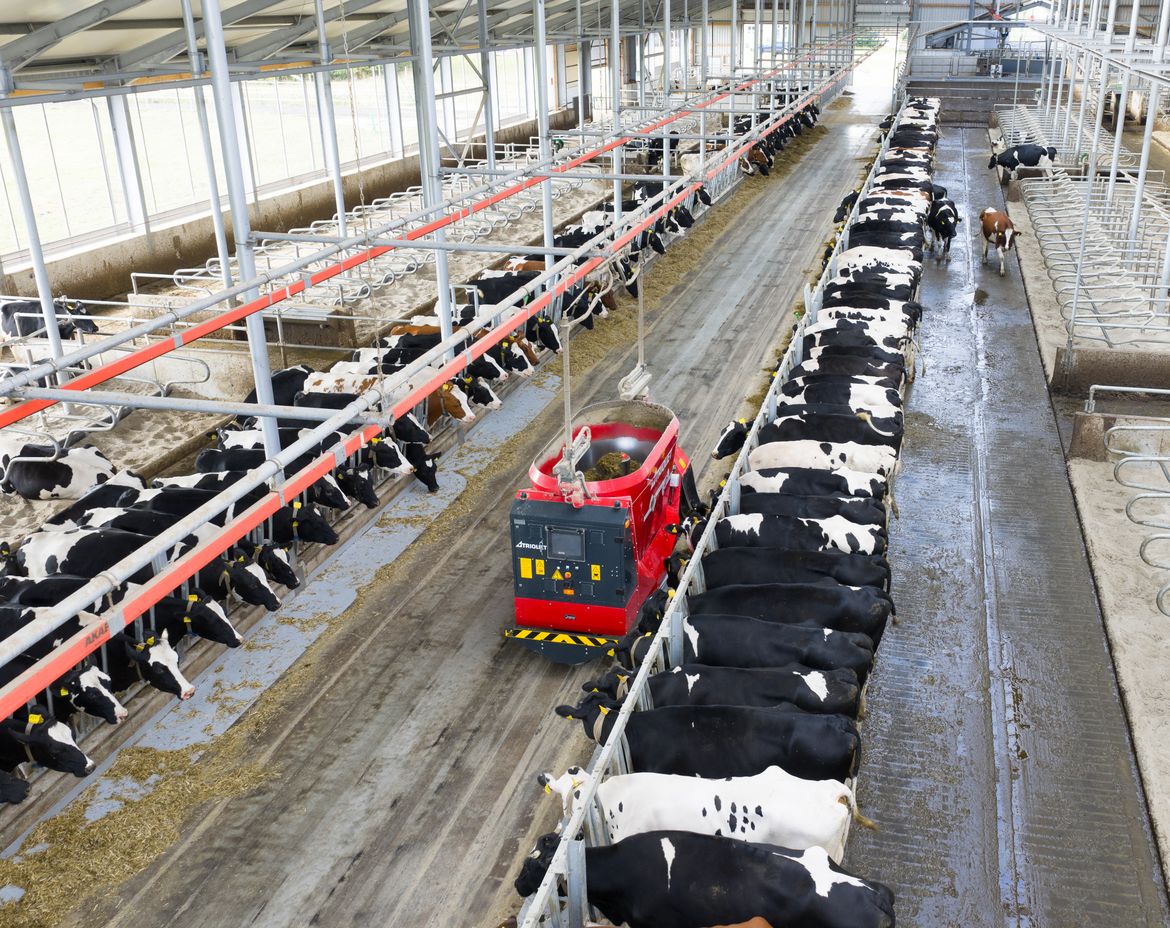

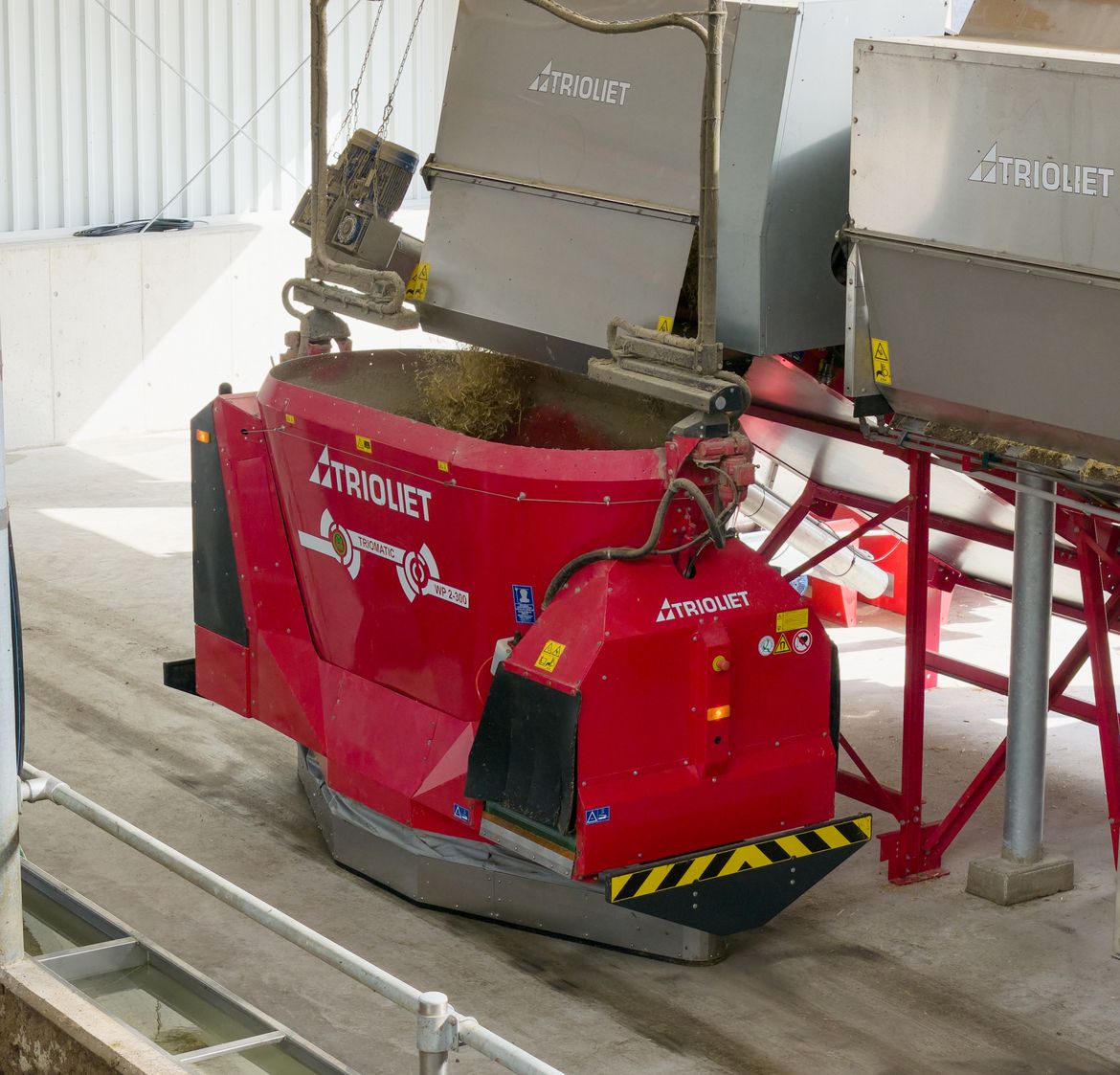

    This feeding robot travels on four wheels, so it does not need any form of suspension. Two independent drive wheels mean that the robot can be easily manoeuvred around the feeding alleys. The wheel-driven feeding robot has two vertical mixing augers, a cross conveyor belt capable of discharging on both left and right, and a capacity of 3 m3. A power rail delivers electricity to the robot, but does not impose any extra building construction requirements. This continuous power supply ensures that the system will not run out of power. The Triomatic WP 2 300 feeding robot follows the power rail. It can handle a gradient of up to 5% and easily cross thresholds of up to 50 mm. The robot can be combined with all types of Triomatic feed kitchens. In combination with a stationary feed mixer, a feed kitchen for blocks or bales, or storage bunkers for bulk feed, the feeding robot can be used as a fully automated feeding system. A suspended feeding robot is also available.

    attributes

    Capacity 3 m³
    Discharge type Cross conveyor belt
    Model Wheel-driven feeding robot

    Photos

    Video

    Standard features

    • 3 m3 mixing tub in wear-resistant stainless steel
    • Two vertical mixing augers in wear-resistant stainless steel
    • Cross conveyor belt capable of discharging on both the left and right
    • Touchscreen and operating terminal
    • All-electric drive
    • Bumper protection
    • Continuously variable speed control of the cross conveyor belt and mixing auger
    • Four wheels, two of which are powered and two free-rotating

    Technical specifications

    Triomatic  WP 2 300
    Capacity m3 3
    Length m 3.60
    Width m 1.38
    Net weight kg 2.250
    Maximum payload kg 1.250
    Max. offset, left and right from the power rail 1
    Min. (net) feeding alley width m 2.57
    Required connecting current A 3x32
    Required voltage V~ 400
    Max. gradient % 5
    Max. threshold height mm 50
