Triomatic HP suspended feeding robot

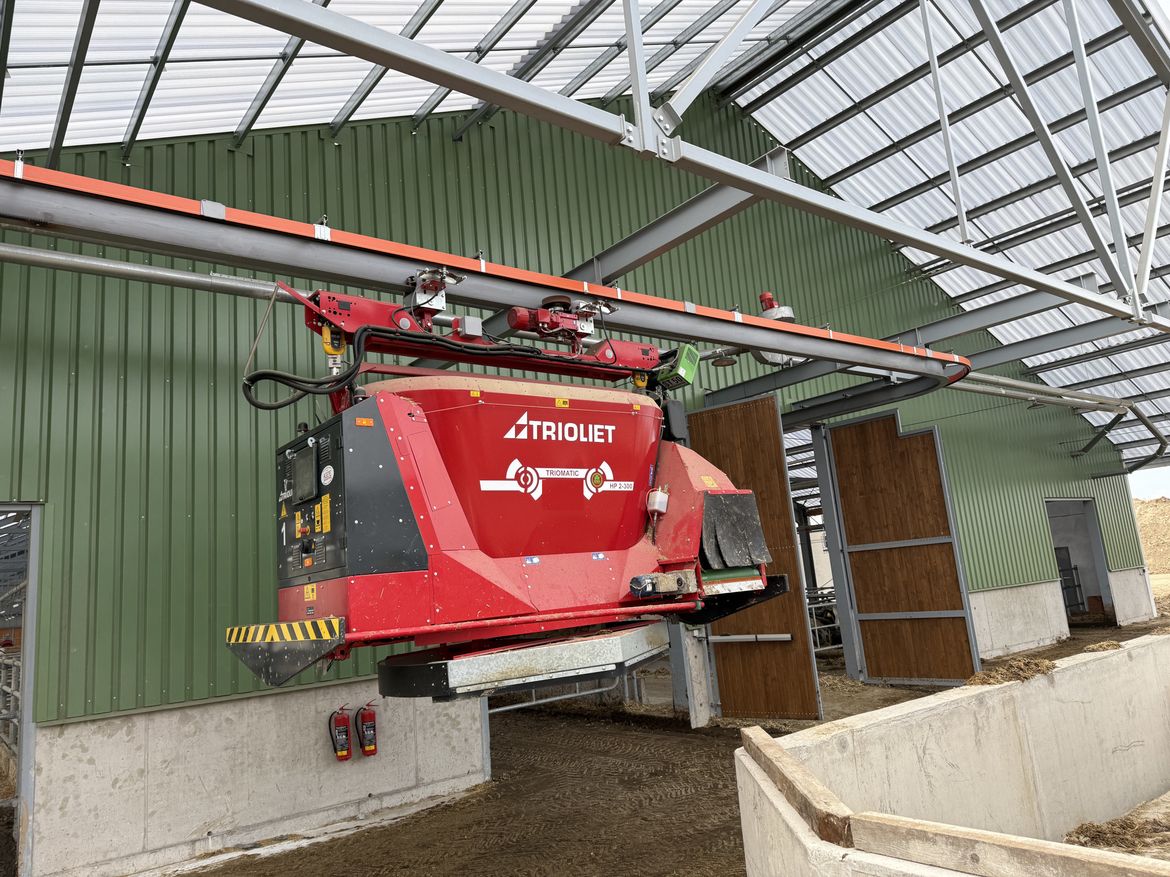

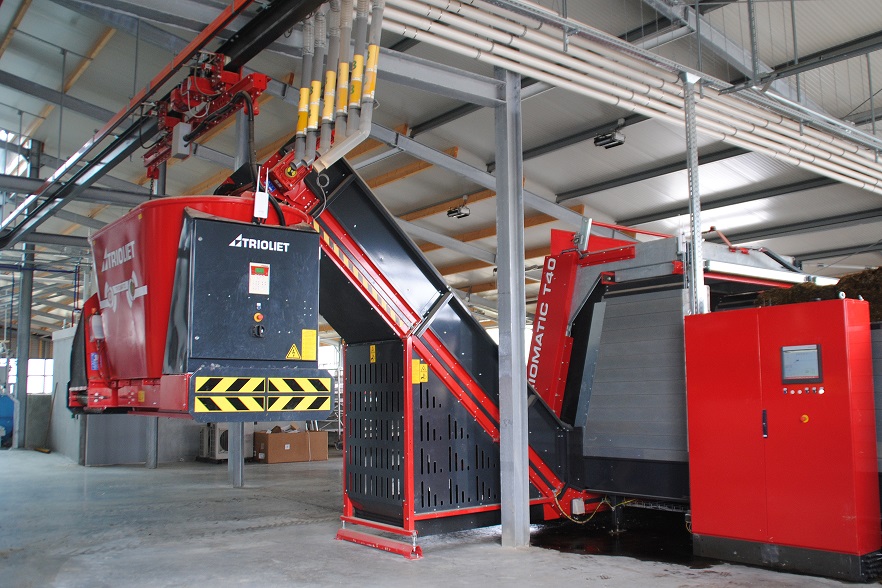

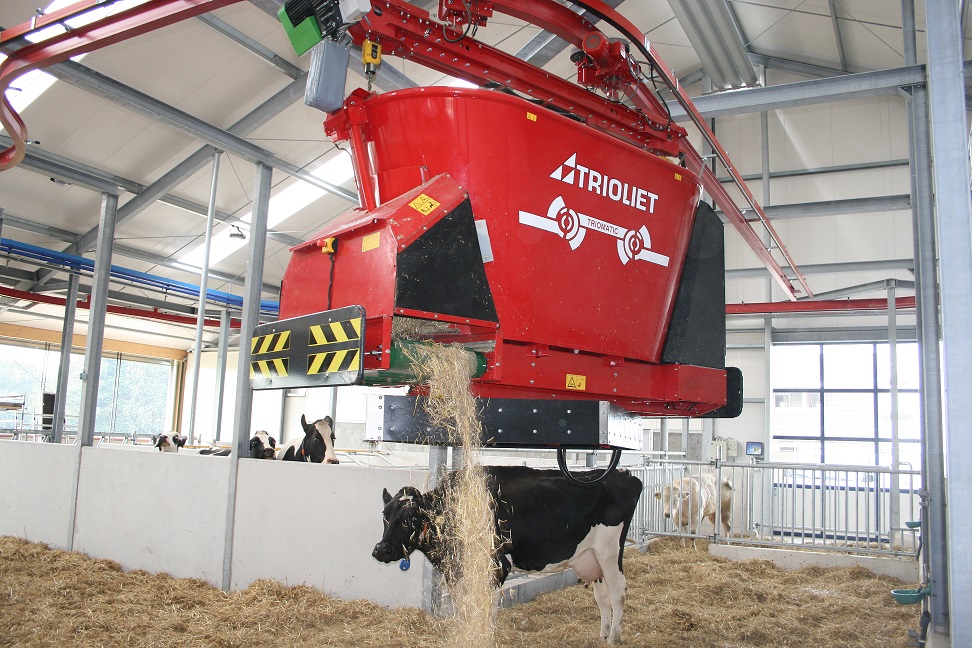

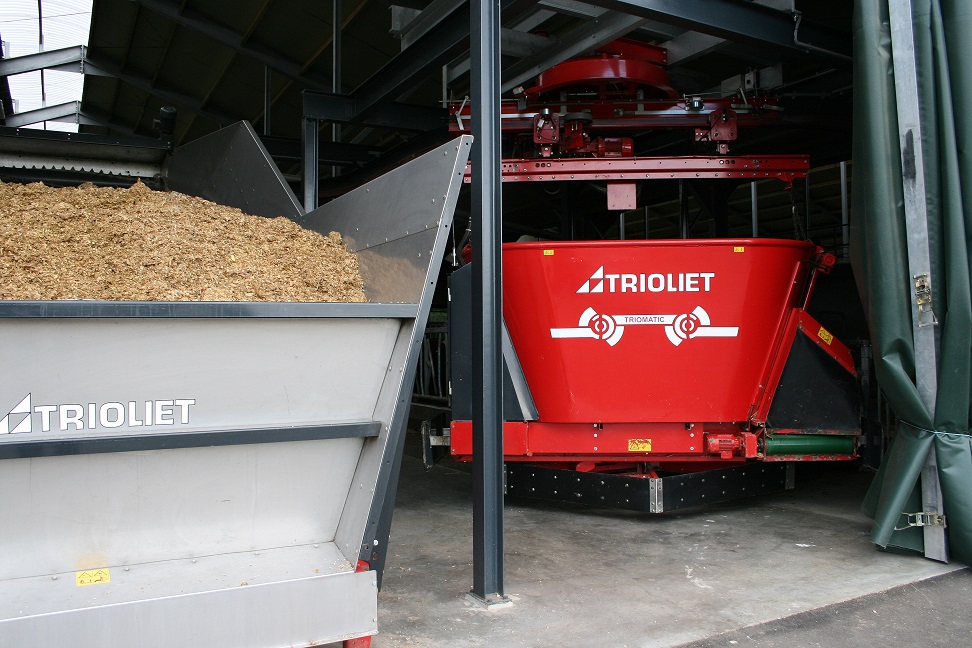

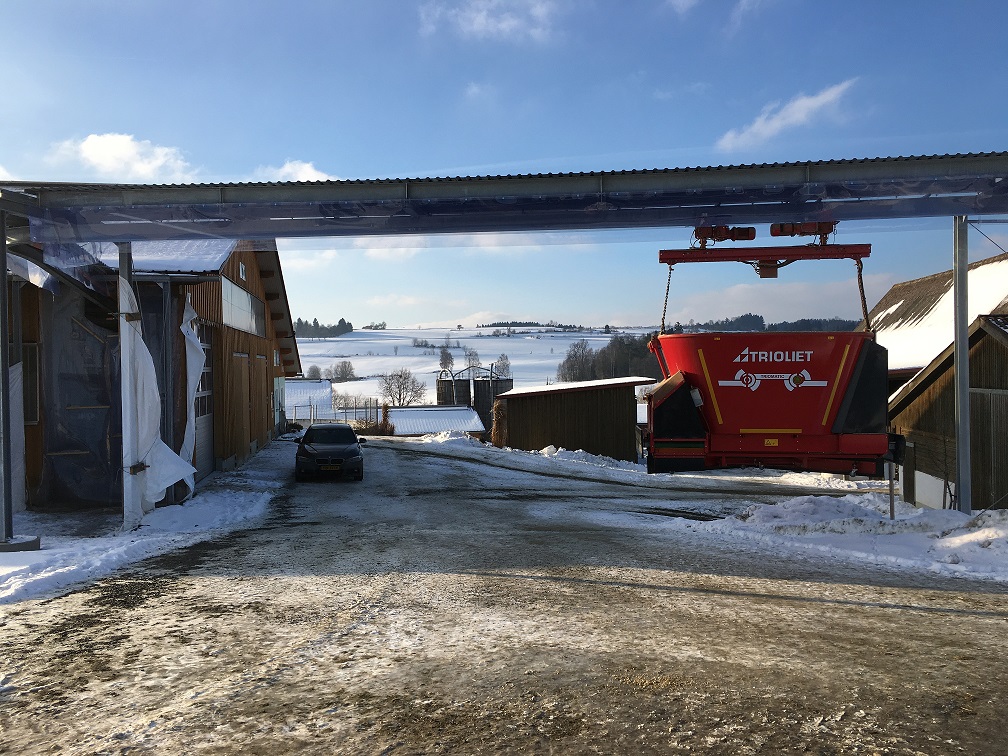

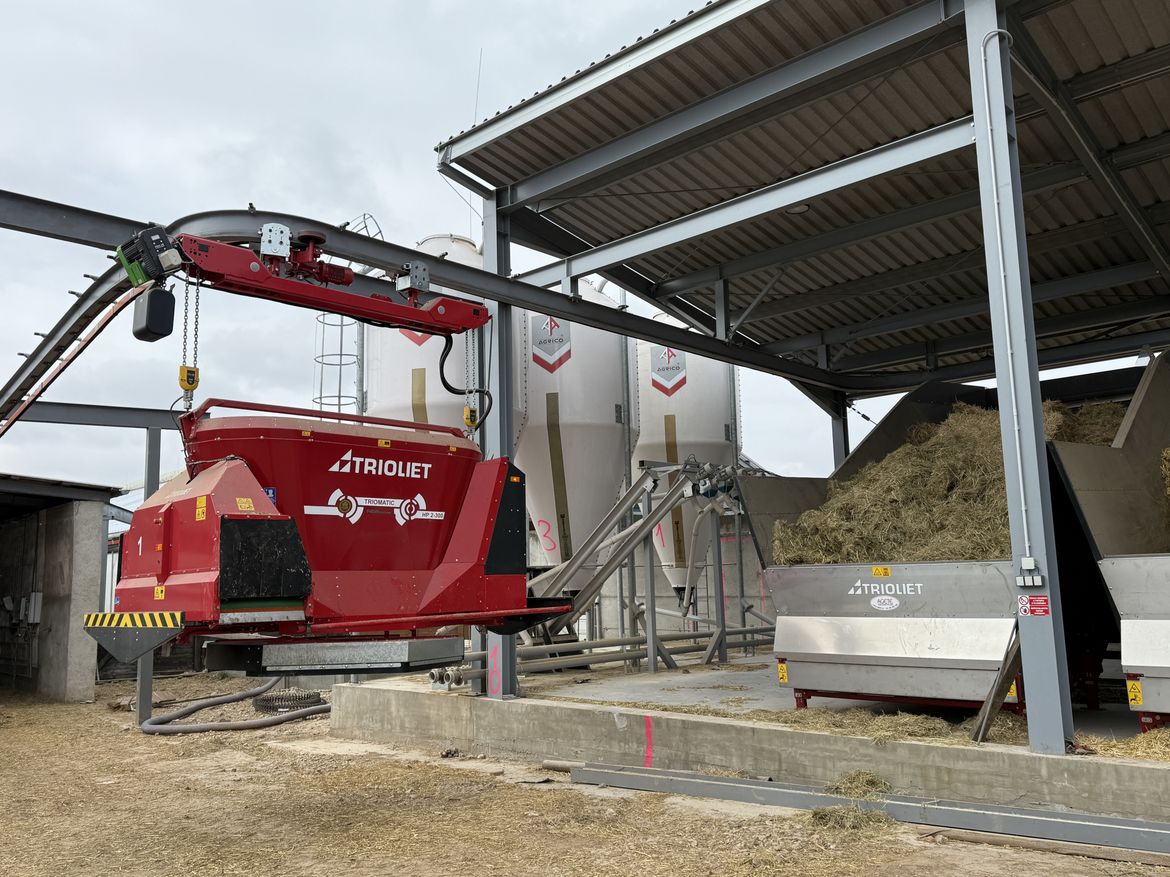

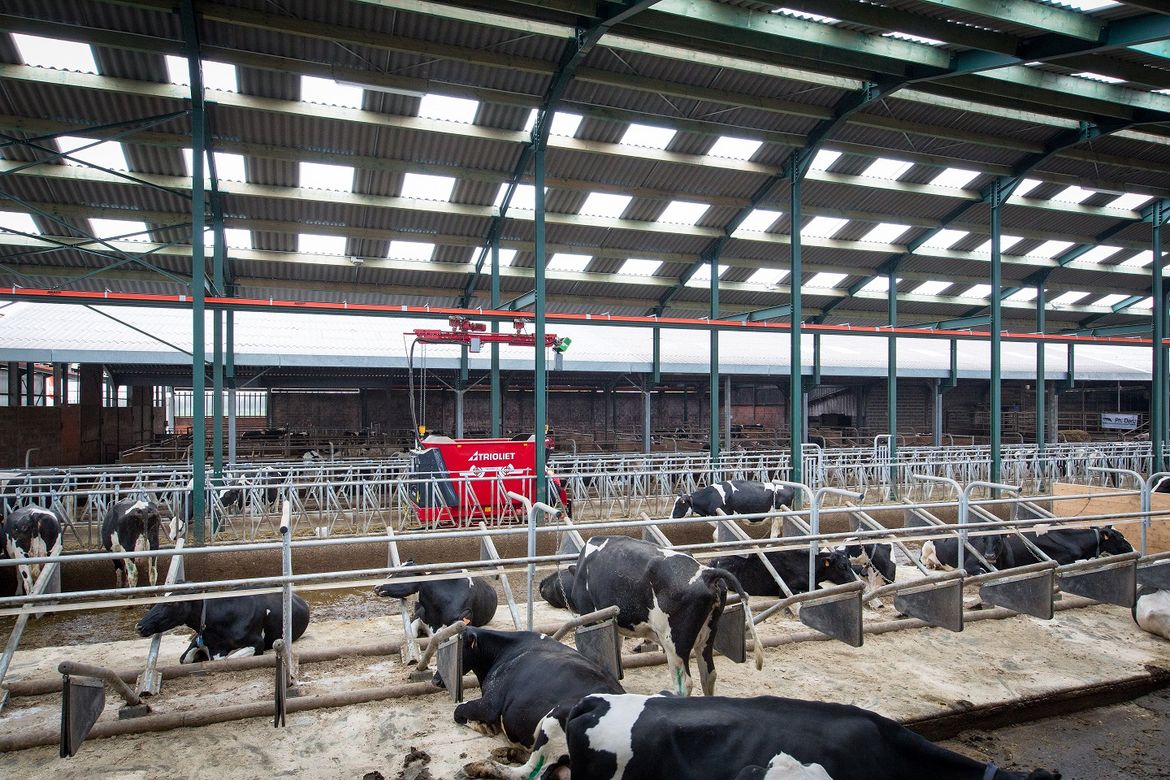

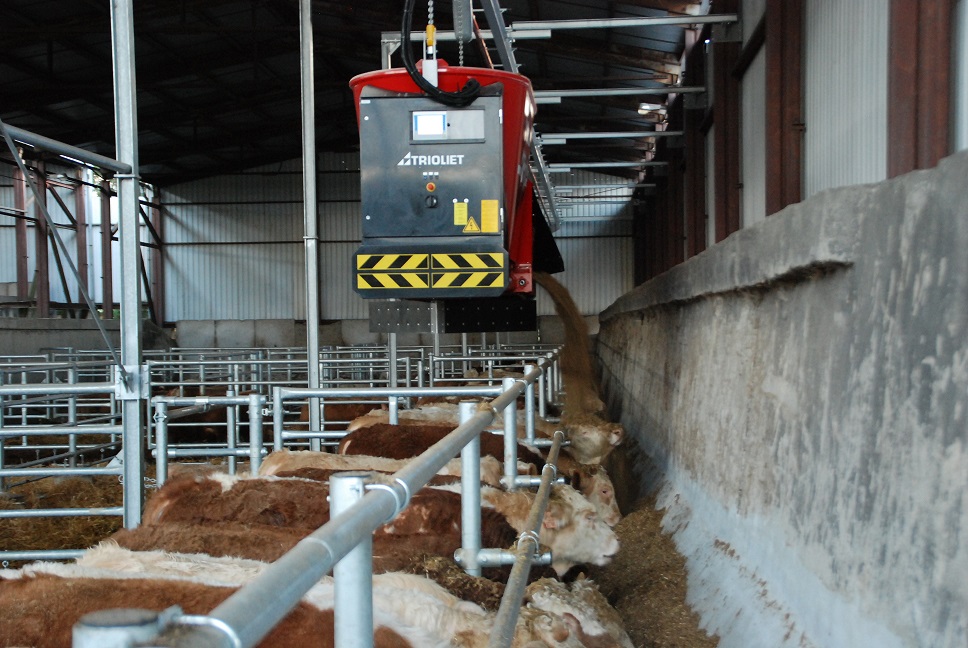

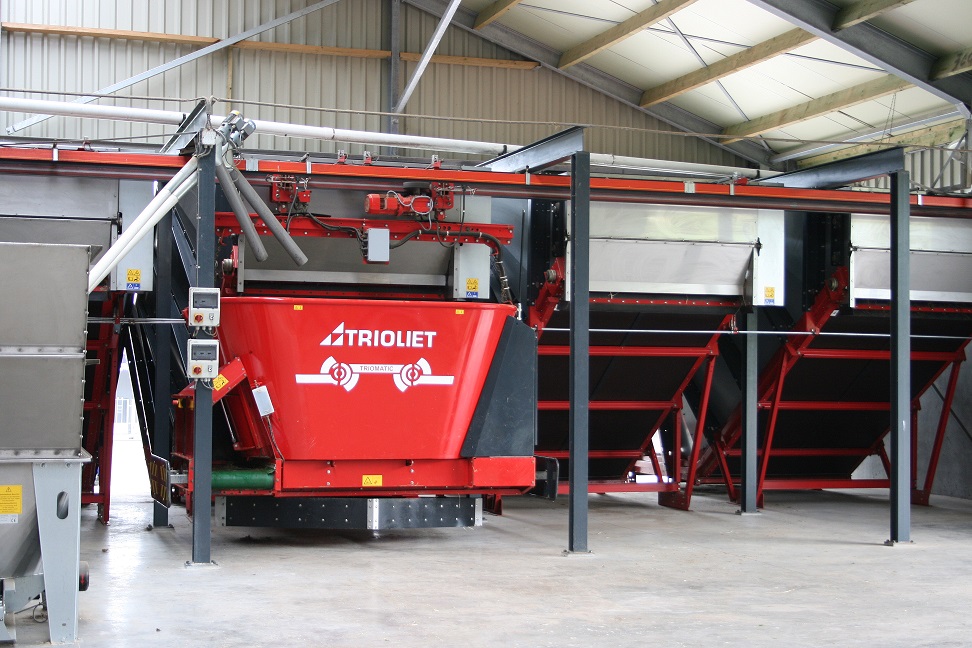

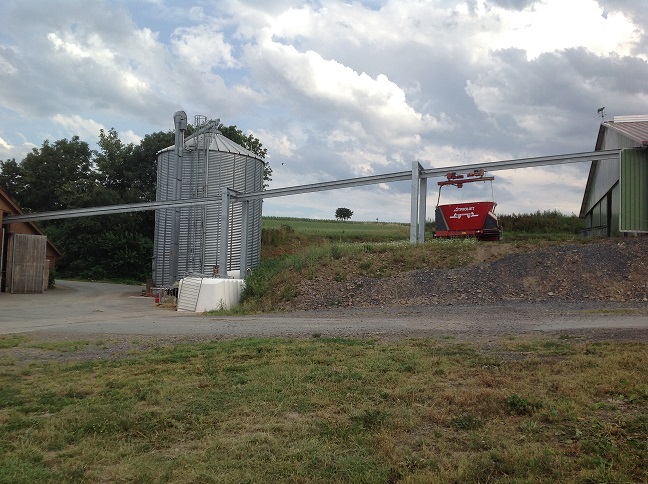

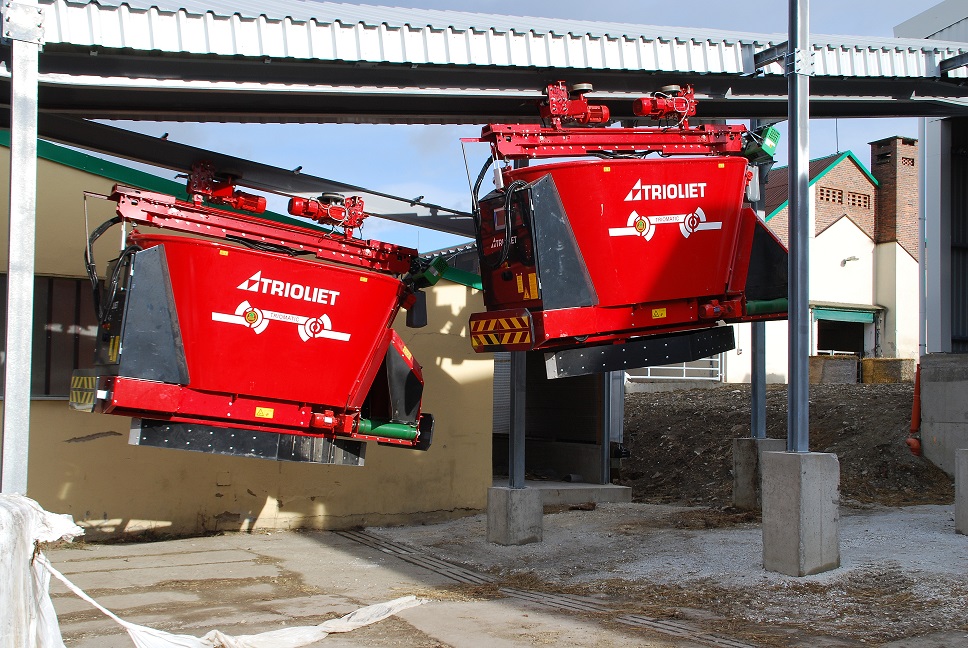

    The Triomatic HP 2 300 is a suspended feeding robot. The robot moves around the building using a suspended rail system, which is particularly handy if the robot has to be kept clear of the floor in some parts of the building. This feeding robot can, in fact, be raised up in order pass over the cubical area if needed. This means the robot can also be used to scatter straw in the bedding area. Because the Triomatic HP 2 300 feeding robot is suspended from a rail, the surface conditions are not relevant and the system does not depend on the weather conditions in outdoor areas. The Triomatic feeding robot has two vertical mixing augers, a cross conveyor belt capable of discharging on both left and right, and a volume of 3 m3. In combination with a stationary feed mixer, a feed kitchen for blocks or bales, or storage bunkers for bulk feed, the feeding robot can be used as a fully automated feeding system. Wheel-based feeding robots are also available, such as the Triomatic WP 2 300 feeding robot on wheels.

    attributes

    Capacity 3 m³
    Discharge type Cross conveyor belt
    Model Suspended feeding robot

    Photos

    Video

    Standard features

    • 3 m3 mixing tub in wear-resistant stainless steel

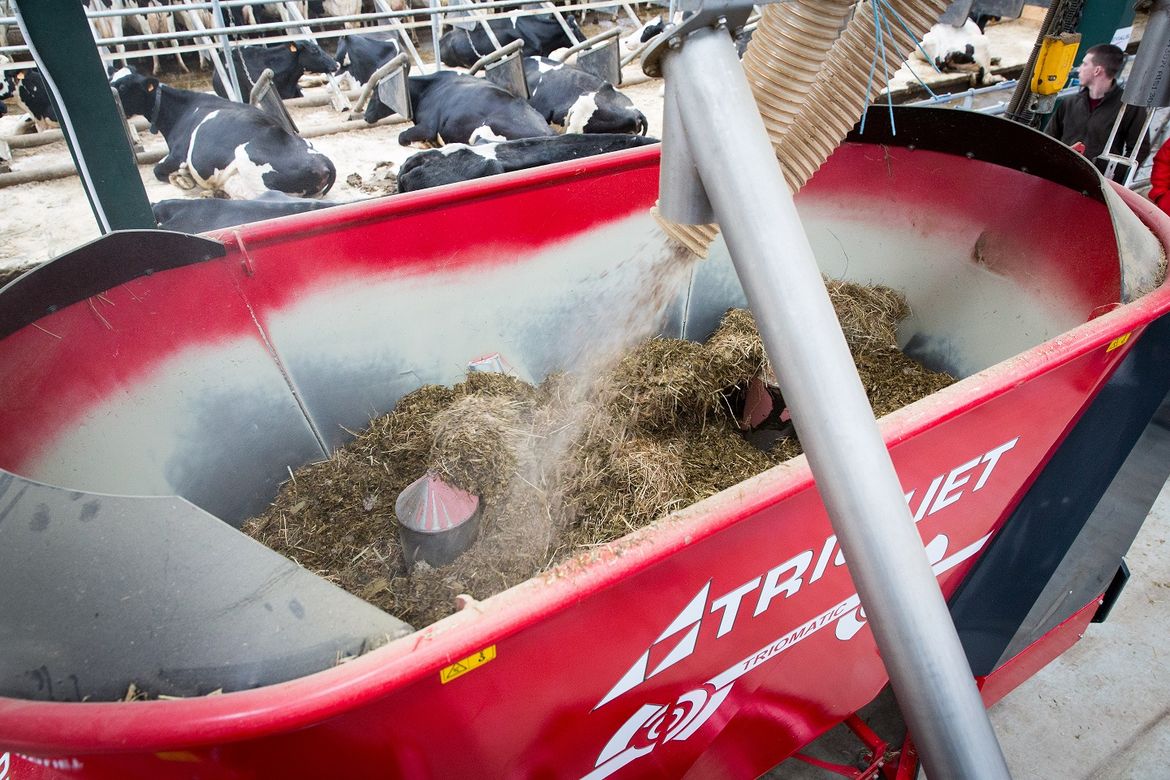

    • Two vertical mixing augers in wear-resistant stainless steel
    • Cross conveyor belt capable of discharging on both the left and right
    • Touchscreen and operating terminal
    • All-electric drive
    • Bumper protection
    • Continuously variable speed control of the cross conveyor belt and mixing auger
    • Trolley system with rubber-coated drive wheel

    Technical specifications

    Triomatic HP 2 300
    Capacity m3 3
    Length m 3,26
    Width m 1,35
    Net weight kg 1.750
    Maximum payload kg 900
    Min. track height m 2,80
    Min. (net) feeding alley width m 2,40
    Required connecting current A 2x32
    Required voltage V~ 400
    Max. standard track route gradient % 2
    Max. extra track route gradient (with rack and pinion drive) % 14
